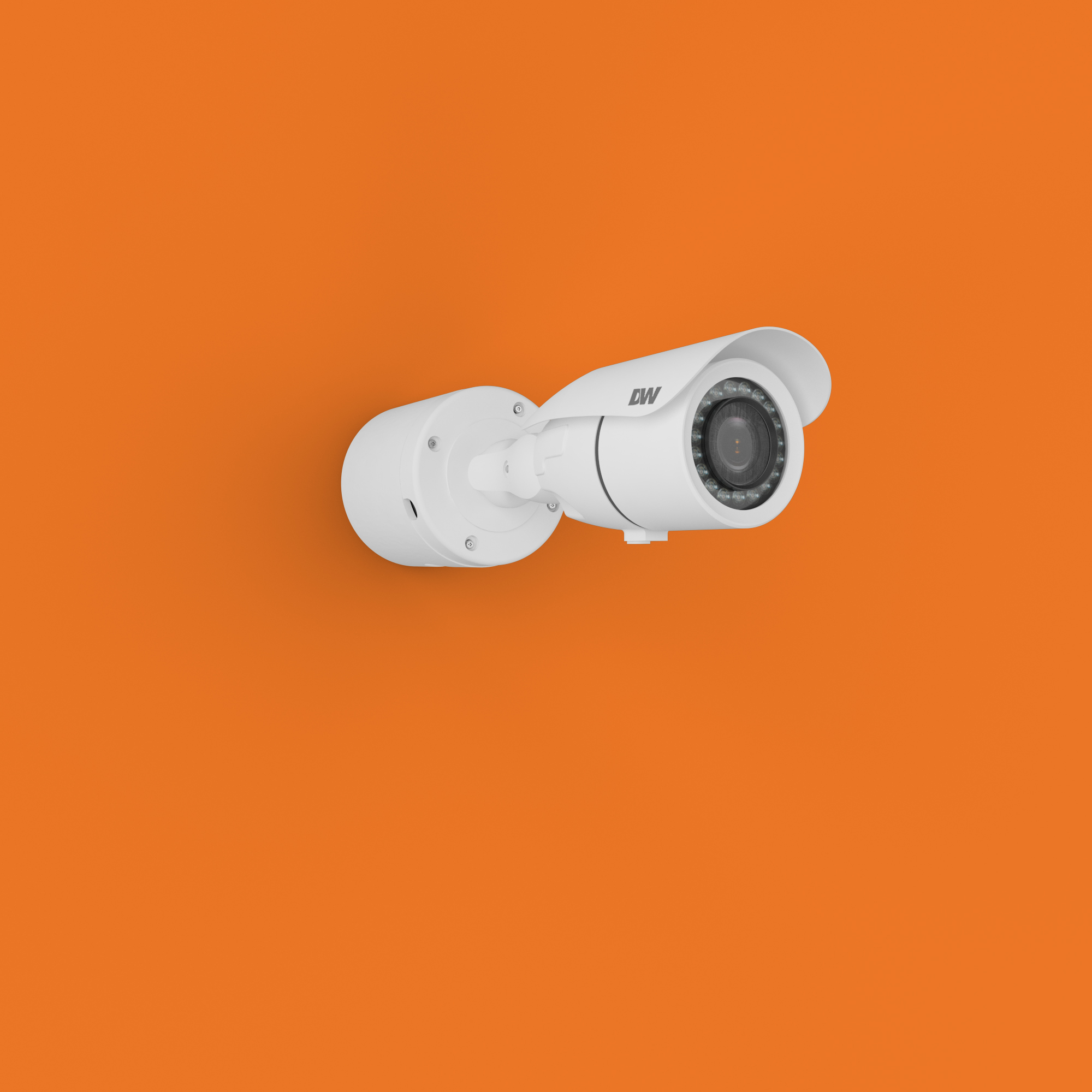

DWC-B6563WTIRW

Star-Light Plus Universal HD Series, Weatherproof Bullet, 5MP@20fps/4MP@30fps, HD-Analog, HD-TVI, HD-CVI and all Legacy Resolutions, 2.7-13.5mm Varifocal P-Iris Lens, T-WDR, 100ft IR, TDN with IR Cut Filter, Smart 3D-DNR, OSD Control Via Coax, 1 Alarm Input, De-Fog, Dual Voltage, IP66, 5 Year Warranty
Features
  • Ultra-High Resolution Capture crystal-clear footage with 5MP resolution, delivering forensic-level detail for enhanced security and evidence gathering.
  • Universal HD over Coax® Supports HD-Analog, HD-TVI, and HD-CVI formats, making it easy to upgrade legacy coaxial systems without rewiring.
  • Star-Light Plus™ Technology Achieve vivid color imaging in near-total darkness, ensuring reliable surveillance even in low-light environments.
  • Smart IR™ Night Vision Enjoy up to 100 feet of intelligent infrared illumination that adapts to the scene, preventing overexposure and enhancing clarity.
  • Flexible Lens Control The 2.7–13.5mm vari-focal p-iris lens allows precise zoom and focus adjustments for optimal field of view and image sharpness.
  • Wide Dynamic Range (WDR) True WDR balances lighting in challenging scenes, capturing clear images in both bright and dark areas simultaneously.
  • Weatherproof Durability Built with an IP66-rated housing, this camera withstands harsh weather conditions for dependable outdoor performance.
  • De-Fog™ Compensation Maintain image clarity in foggy or hazy conditions with built-in De-Fog™ technology that enhances visibility.
  • NDAA-Compliant Security Meets U.S. government standards for secure deployment in federal and commercial environments.
  • 5-Year Warranty Enjoy peace of mind with a robust 5-year warranty, reflecting Digital Watchdog’s commitment to quality and reliability.

Learn about how DW
solutions can work for you

View All Markets

Megapixel resolution

DW’s technology delivers crystal-clear images in resolutions up to 5MP over coaxial infrastructure. Higher resolution delivers forensic details when zooming into the camera’s field of view.

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

Universal HD over Coax® Technology

Universal HD over Coax® Complete Solutions are the best way to upgrade an existing analog system to high-definition. Universal HD over Coax® cameras and recorders can transmit HD-Analog, HD-TVI, HD-CVI signals up to 4K, and analog signals to 960H.

Specifications

Active Pixels 2608 (H) x 1960 (V)
Frequency 50Hz
60Hz
Image sensor 5MP 1/2.8" CMOS sensor
Maximum resolution 5MP
Analog CVBS: Up to 960H @ 30fps
HD-Analog and HD-TVI: 5MP/1944p @ 20fps and 12.5fps
HD-Analog, HD-TVI and HD-CVI: 2.1MP/1080p @ 30fp
HD-Analog, HD-TVI and HD-CVI: 4MP/1440p @ 30fps
HD-Analog, HD-TVI and HD-CVI: 720p @ 30fp
Minimum Scene Illumination in color 0.0 lux (B/W)
0.08 lux (color)
Scanning System Progressive scan
Signal technology CVBS up to 960H
HD-Analog
HD-CVI
HD-TVI
Universal HD over Coax® technology
Test Video Output CVBS video output for testing
Lens
Advanced Lens Features P-iris
Focal Length 2.7mm ~ 13.5mm
Horizontal Field of View (HFOV) 102° ~ 31.4°
Illumination Distance 100' range Smart IR™
Lens Type Vari-focal Lens
Vertical Field of View (VFOV) 73.9° ~ 23.3°
Operational
3D digital noise reduction Smart DNR™ 3D Digital Noise Reduction
Auto gain control Auto
Backlight compensation (BLC) Yes
Camera Control Pelco C
UTC
UTP built-in
Day and night Auto day/night
Day (color)
Night (B/W)
De-fog Yes
Gamma 0.45
Mirror/flip Yes
Motion Detection Yes
Privacy Zones 24 programmable provacy zones
Sharpness Yes
Shutter Mode Auto
Shutter Speed 1/30 ~ 1/30000
Star-Light (sense up) Off
x2-x32
White Balance Yes
Wide Dynamic Range (WDR) True WDR 120dB
Environmental
Compliance CE  FCC  NDAA Comp
Environmental Operating Humidity 10-90% (non-condensing)
Environmental Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional) Optional. Sold separately

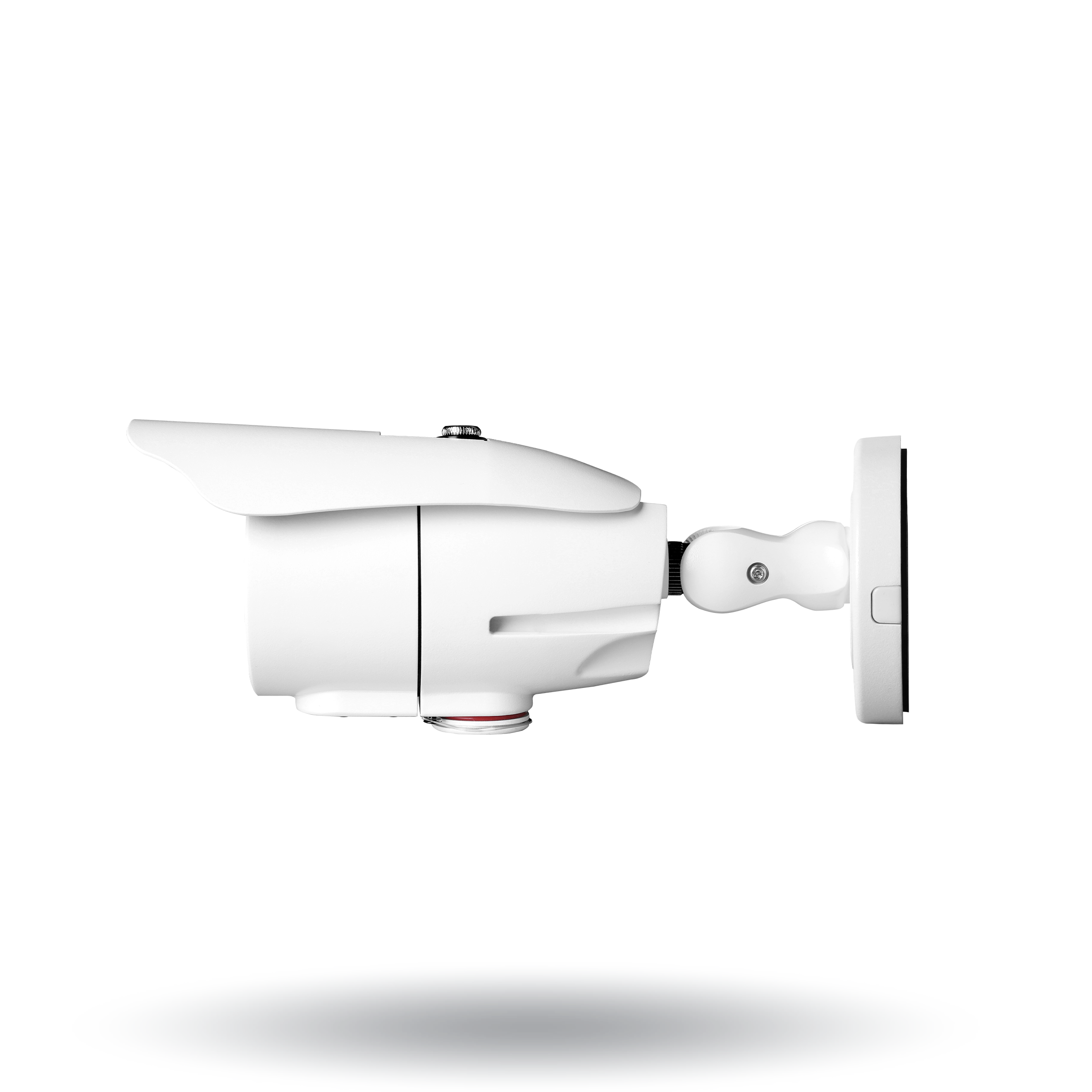

Mechanical
Camera Dimensions (H X W X D) *Dimensions based on the position of the sun shield cover
8.83" x 3.8" (224.5 x 96.7 mm)
Camera Weight 1.65 lbs (0.75kg)
Housing Bullet
Housing Color White
IP rating Weather Resistant (IP66)
Materials Aluminum die-casting
Electrical
American wire gauge (AWG) Cable type #18
Power Consumption AC24V (LED on): 4.4W, 183.3mA
AC24V (no LED): 2.86W, 119.1mA
DC12V (LED On): 5.0W, 420mA
DC12V (no LED): 3.3W, 275mA
Power Requirements 24 V AC
General
Warranty 5 Year Warranty

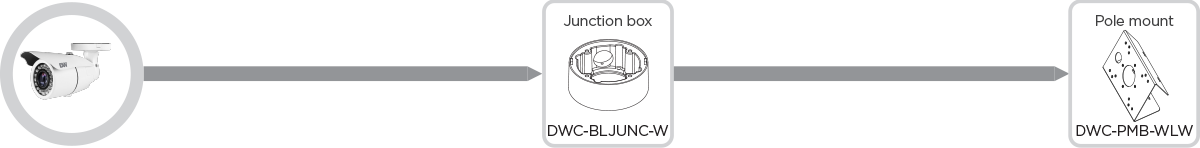

Accessories

DWC-BLJUNCW
DWC-BLJUNCW Junction Box – Weatherproof Mount for Bullet Cameras | Digital Watchdog
Learn more

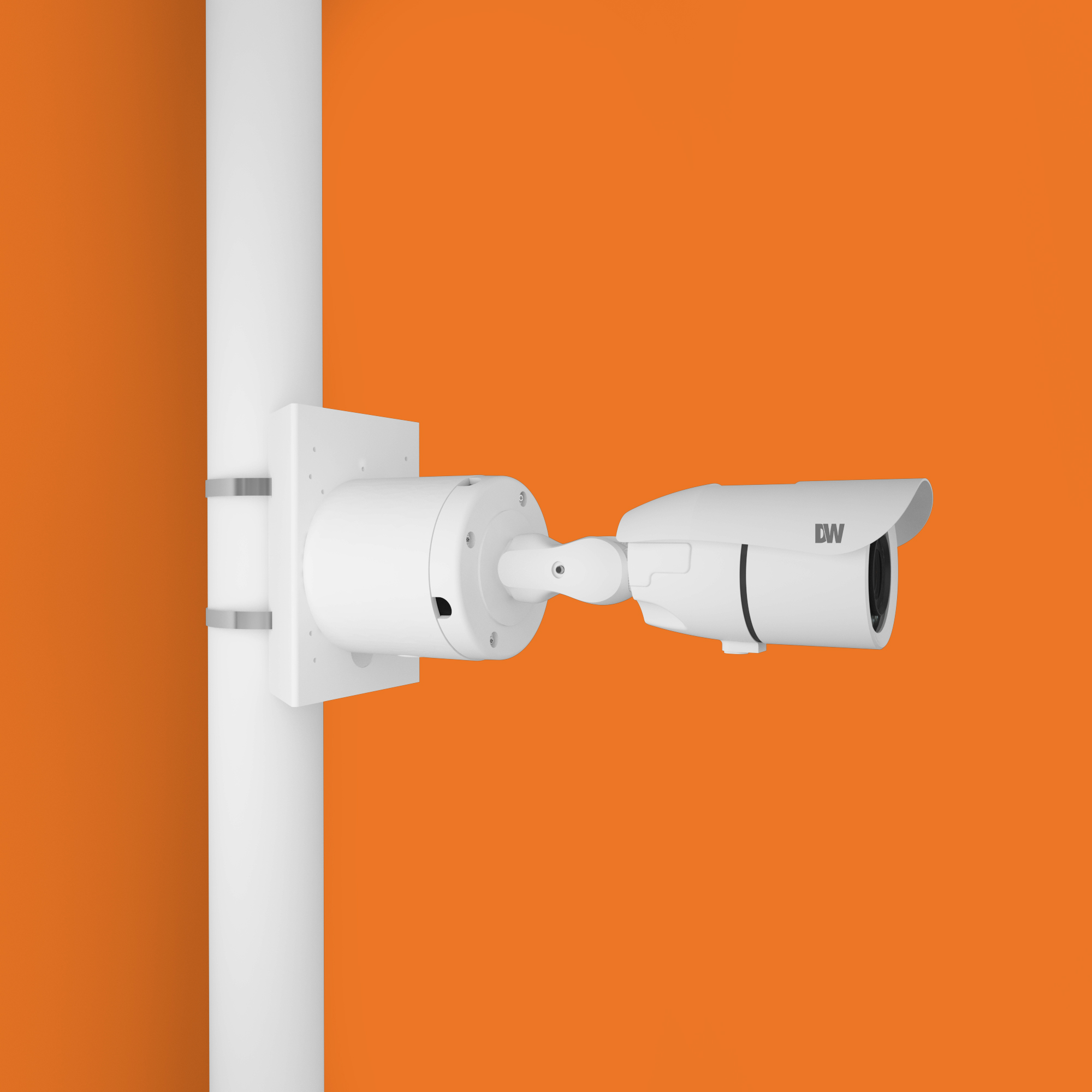

DWC-PMB-WLW
DWC-PMB-WLW Pole Mount Bracket – White | Durable Outdoor Camera Mounting Solution
Learn more

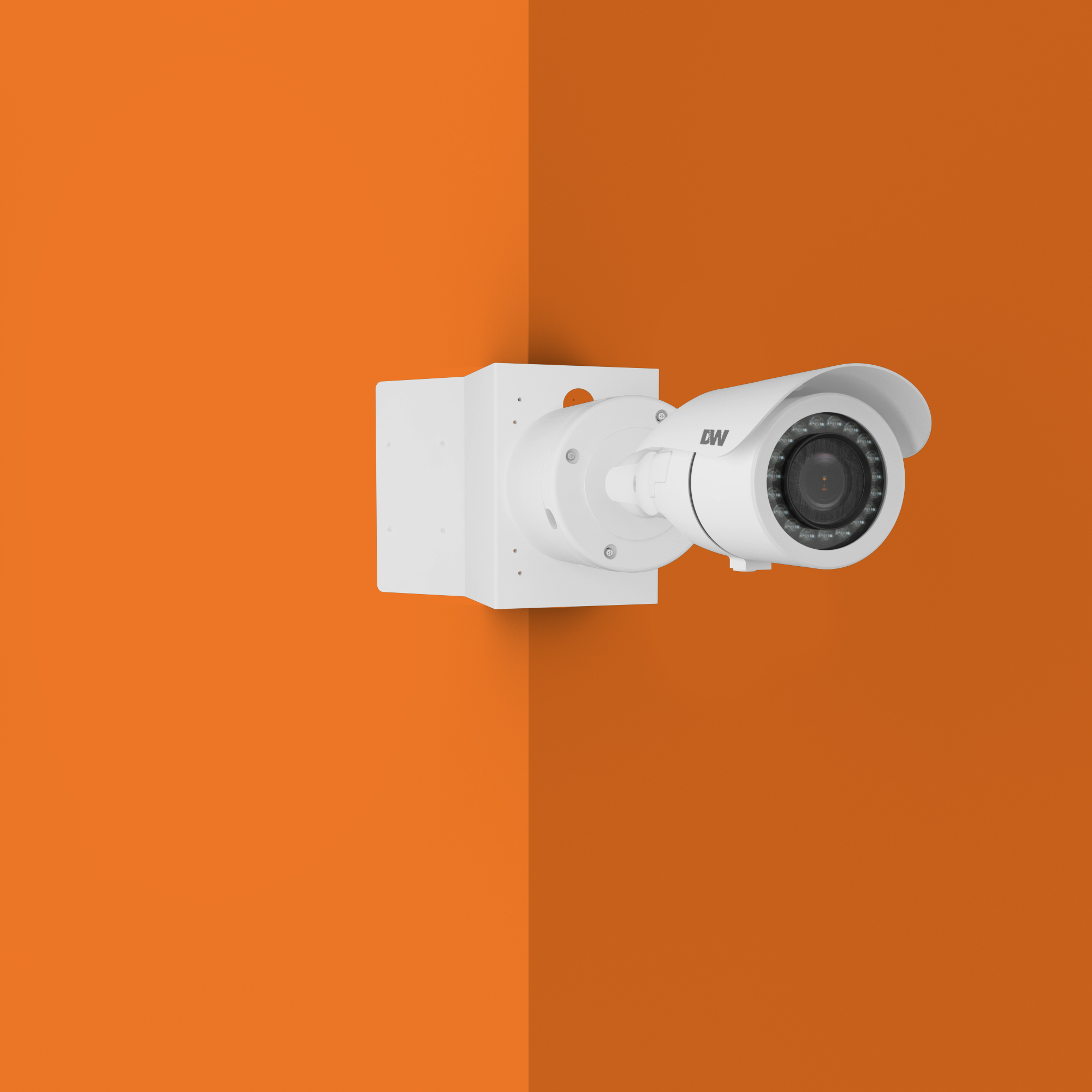

DWC-V1CNMW
DWC-V1CNMW Corner & Pole Mount Bracket – White | Versatile Security Mounting Solution
Learn more
DWC-D3263WTIR
DWC-D3263WTIR HD Dome Camera | Star-Light, Smart IR, WDR | Digital Watchdog
Learn more

Documents

Title Type
Star-Light Plus brochure
pdf Download
DWC-B6563WTIRW datasheet - French
pdf Download
DWC-B6563WTIRW datasheet - Spanish
pdf Download
DWC-B6563WTIRW datasheet
pdf Download
DWC-B6563WTIR_W AE specifications
doc Download
DWC-B6563WTIR_W CAD drawings
dwg Download
DWC-B6563WTIRW quick setup guide
pdf Download
DWC-B6563WTIR_W user manual
pdf Download
